Junior Valve Type Orifice Plate Flowmeter

2021-04-07 16:49:10 62

● TYPICAL SPECIFICATIONS

1.In addition to the features of valve-type orifice plate pressure device, orifice plate lifting mechanism is also provided. Fluid transmission, however, has to be stopped for replacement of orifice plate. Compared with that of senior type, the product of this type features simple structure and lower price.

2.The product of this type is further classified into sulfur-resistant and sulfur-irrestant type.

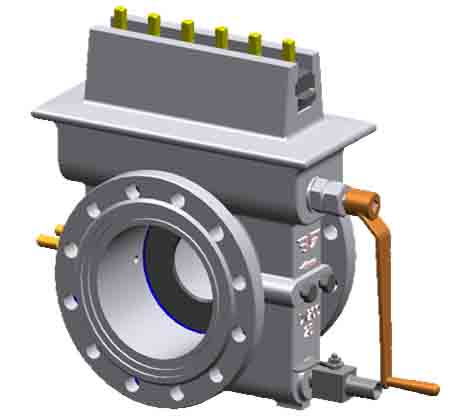

3.The manufacturer can supply complete set of device shown, the size of the openings decided by the   customer.

图片关键词

● TECHNICAL SPECIFICATIONS

1. Typical application: metering of natural gas and gas main pipelines, or gas distribution station with large flow.

2. Suitable medium: purified natural gas, sour natural gas, air and cleaning oil.

3. Medium temperature: -29℃~121℃

4. Pressure Class: PN1.6~16MPa (class150~900) (to be customized when over 16MPa/class900)

5. Size: DN50~DN600mm (to be customized when above 700mm.

● MAIN STANDARDS

AGA3/AGA8 Orifice Metering of Natural Gas/ Compressibility Factors of Natural Gas and other Related Hydrocarbon Gases

GB/T2624   Measurement of Fluid Flow by Means of Orifice Plates, Nozzles and Venturi Tubes Inserted in Circular Cross-section Conduits Running Full.

GB/T21446  Metering the Flow Rate of Natural Gas With Standard Orifice Plate.

JB/T7252     Valve Type Orifice Plate Pressure Device.

JJG640        Pressure Differential flowmeter (Regulations governing metrological verification of the People’s Republic of China).

JB/T82         Steel Pipe Welding Neck Flanges with Male and Female Face (Male and Female Face as well when for low pressure).

GB/T5464    General-purpose Specification for the Packaging of Instrumentation Products.

GB/T8603   Technical Requirements of Measuring Systems for Natural Gas

● MATERIAL OF MAIN PARTS

Name of Parts

Non-Sulphur resistant

Sulphur resistant

Body, Bonnet

WCB Casting steel

Orifice Plate

Austenitic Stainless Steel

Sealing Plate

Rubber 5080

Fluorine rubber F370

Valve Plate

2Cr13

318

Mating Flanges

20 (unless otherwise specified in contract)
