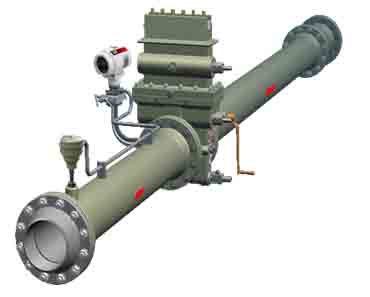

Integrative Orifice Plate Flowmeter

2021-04-07 16:29:55 100

● OVERVIEW

The integrative orifice plate flowmeter produced in our company is designed to assemble the orifice plate pressure device and integrative flowmeter at the factory, minimize the measure error caused by assembling or mismatching with the second instrument, maximize improvement of measurement accuracy of orifice plate pressure device. At the same time, to meet the requirements of customers, the installation and maintenance costs will be at least. Integrative flowmeter integrates differential pressure and pressure transmitter, support input of PT100 temperature sensor.

● MAIN STANDARDS

AGA3/AGA8 Orifice Metering of Natural Gas/ Compressibility Factors of Natural Gas and other Related Hydrocarbon Gases

GB/T2624   Measurement of Fluid Flow by Means of Orifice Plates, Nozzles and Venturi Tubes Inserted in Circular Cross-section Conduits Running Full.

GB/T21446  Metering the Flow Rate of Natural Gas With Standard Orifice Plate.

JB/T7252     Valve Type Orifice Plate Pressure Device.

JJG640        Pressure Differential flowmeter (Regulations governing metrological verification of the People’s Republic of China).

JB/T82         Steel Pipe Welding Neck Flanges with Male and Female Face (Male and Female Face as well when for low pressure).

GB/T5464    General-purpose Specification for the Packaging of Instrumentation Products.

GB/T8603   Technical Requirements of Measuring Systems for Natural Gas

●TECHNICAL SPECIFICATIONS

1. Suitable medium: natural gas, sulf-natural gas, gas, steam and cleaning oil,etc.

2.  Medium temperature: -29℃~121℃

3. Pressure class: PN1.6~16Mpa(to be customized when over PN 16MPa)

4. Size: DN50~DN600mm (to be customized when over 600mm)

● MATERIAL OF MAIN PARTS

Component description

Non-sulfur  resistant

Sulfur  resistant

Valve body, valve cap

Cast iron WCB

Orifice plate

Austenitic Stainless Steel

Seals

Rubber 5080

Fluorine rubber F370

Valve plate

2Cr13

318

Flange

20 (unless otherwise specified in contract)

Flowmeter case

Casting aluminum alloy

● MAIN PERFORMANCE

To meet the different requirements of customers, our company introduces the following two kinds of flow computers for selection:

Model

FloBoss103

RoseMount3095MV

Executive Standards

AGA3/AGA8

AGA3/AGA8,ASME Steam density

Precision

1%

1%

Range Ratio

10:1

8:1

Local Display

Pressure, temperature, differential pressure, instant flow, accumulated flow etc.

Pressure, temperature, differential pressure, instant flow, accumulated flow etc.

Communications

Built-in port LOI/RS485, ROC or MODBUS agreement.

HART agreement, after matching the signal distributor, the received digital signal will be converted to multi-channel 4-20mA current (DP,AP,GP,PT,flow) for far spread (Optional)

Far-distance Communications

Communication card (RS232 card or MODEM card) (Optional)

Internal Records

Ten minutes report of 4 data points can be saved for 30 days (Can be configured)

Accumulate total flow

Power Supply

DC12V/24V

DC24V (Two-wire system)

Connection Lines

Four lines, I / O card to be an additional line

Signal and power sharing two lines

Battery Configuration

Built-in battery-powered (about 7 days)/ Optional solar panel

N/A

Input

4 points I / O card (optional)


Output

Digital signals, analog signals and on-off signals(optional)

Digital signal be added on the instant flow signal of 4-20mA.

Notes: Please see the operation manual for the details.
