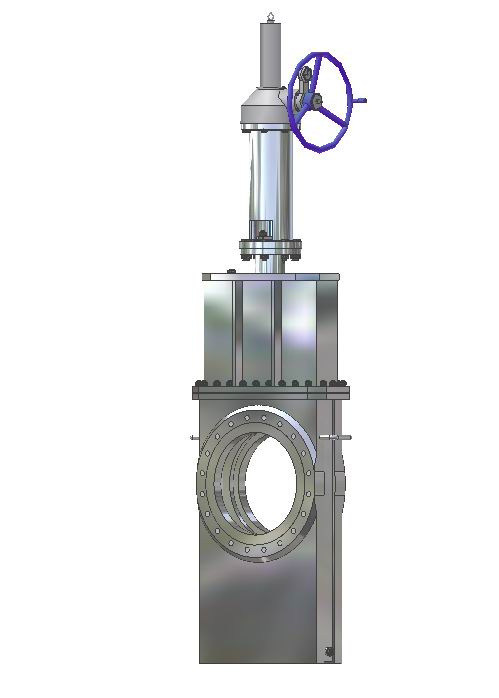

Short Pattern Slab Gate Valve

2021-03-25 15:22:21 117

FEATURES OF SHORT PATTERN SLAB GATE VALVE

  Short pattern through conduit slab gate valves are specially used for installation nearest to the storage tanks or high-altitude installation.

  Body and bonnet are designed per fully welded idea or light body castings, and passed finite element analysis, to realize the optimization design. The valve weight is about 1/3 of standard through conduit slab gate valve. It can be used to reduce pipeline load, prevent pipeline from sinking, and reduce the adverse impact on pipelines and devices due to fundation changes.

  Has all the features of standard through conduit slab gate valve.

  Product range: DN100~1500 (4”~60”)PN16~25bar (class150)

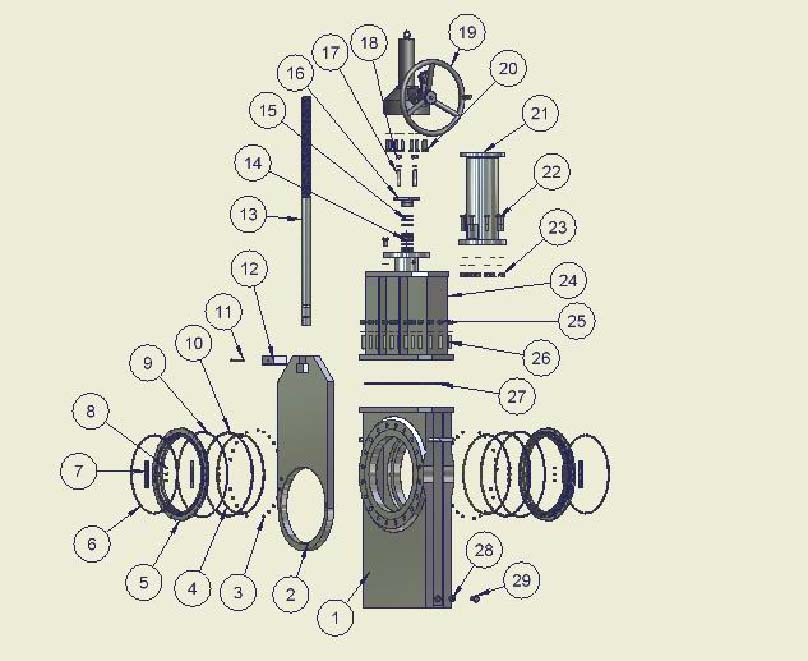

SHORT PATTERN SLAB GATE VALVE ASSEMBLY

图片关键词

SN

Part Name

SN

Part Name

SN

Part Name

SN

Part Name

1

Body

9

O-Ring

17

Bolt

25

Nut

2

Slab Gate

10

O-Ring

18

Nut

26

Stud

3

Spring

11

Pin

19

Actuator

27

Gasket

4

Sealing Ring

12

T-Type Insert

20

Allen Screw

28

Sealing Ring

5

Seat Ring

13

Stem

21

Yoke

29

Drain Plug

6

O-Ring

14

Middle-packing

22

Bolt



7

Guide Strip

15

Packing

23

Nut



8

Pin

16

Stuffing Box Cover

24

Bonnet
